Fresh Potato Starch Cleaning & Washing Machine

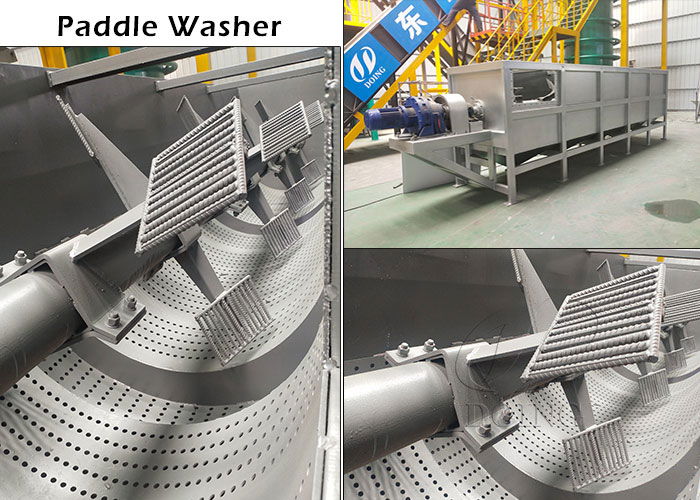

In the process of cassava processing, the first step will be the cleaning and washing. The machine be used in the cleaning and washing process not only determine the damage rate of the material but also have an importance influence on the further production process. 1.The cleaning mechine The cleaning machine used for the cassava processing is the dry sieve. It is widely used in the impurities remove process in the cassava processing which can effectively remove the soil, sand and other impurities. The dry sieve is designed with multiple inner spirals which can automatically and effectively push the raw cassava forward. What’s more, the stable and reliable moving speed prevents the raw cassava from damage. The technical parameters Model Capacity(t/h) Cage Diameter(mm) Speed(r/min) Roller Length(mm) Power(kw) Dimension(m) Weight(kg) DYGS100 10-15 Φ1000 18 4000 5.5 4.0*2.2*1.5 2800 DYGS140 20-30 Φ1400 18 6000 11 6.0*2.35*1.78 3500 2.The washing machine After the cleaning process, the cassava will be washed in the paddle washing machine to further remove the surface impurities. The paddle washing machine adopts the countercurrent washing principle. Driven by the paddle rotating, the cassava will move against the water current which can remove the sand and mud in high efficiency. The technical parameters Model QXJ100 QXJ120-1 QXJ120-2 Capacity(t/h) 10-15 20-30 20-40 Material Carbon Steel Carbon Steel Carbon Steel Diameter of paddle(mm) Φ1000 Φ1200 Φ1200 Motor speed(r/min) 21 18 18 Working length(mm) 5500 6600 6600 Power(kw) 5.5*2 7.5*2 7.5*3(4) Dimension(mm) 7750*2300*2000 8700*2700*2000 8700*5400*2000 Weight(kg) 4050 6100 8760 The advantages of the washing machine 1.Stable move speed can not only guarantee the low material damage rate but improve the extraction rate 2.Reasonable arrangement for the material input improve the washing efficient 3.Easy operation, energy saving and low water consumption. Inquiry: http://services.doinggroup.com.cn/kf.php?mod=client&cid=doingequipment&wid=23 Click here to give you the best price Welcome to make an inquiry of our machine by following contacts: Email: sales@doingmachinery.com Tel: 0086 371 5677 1822 Whatsapp/Phone:0086 135 2661 5783 View more: http://www.cassavaprocessing.com http://www.starchprojectsolution.com
